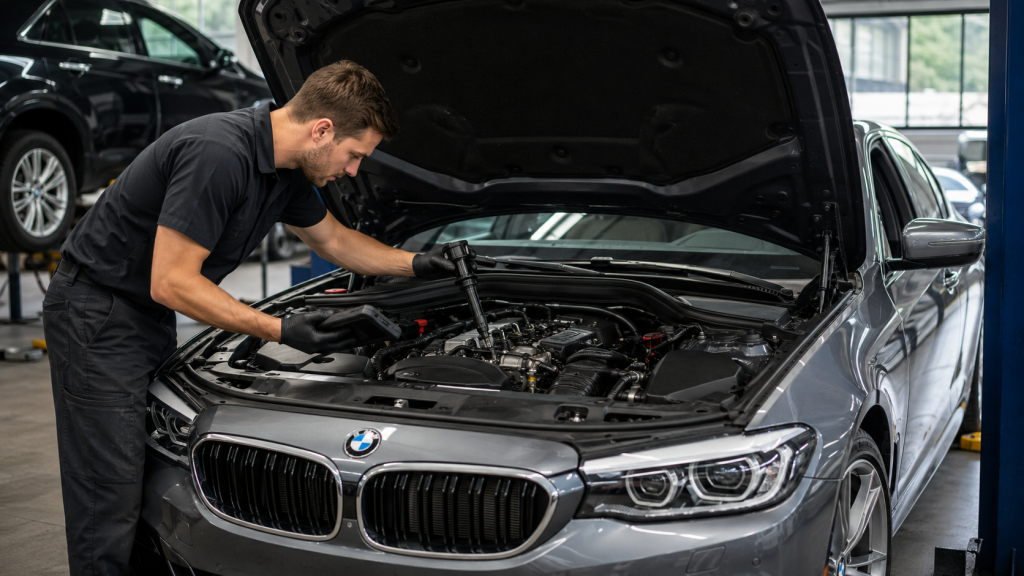

BMW ignition coil diagnosis and repair starts by confirming the faulty part before replacement begins. A rough idle or warning light may point toward a misfire. However, several parts can create the same cylinder fault. Therefore, testing matters before any coil gets replaced.
A technician first reviews stored fault codes and engine data. Then the suspected cylinder receives targeted checks. In addition, the spark plug, wiring, and nearby components may need inspection. This process narrows the fault without relying on symptoms alone.
BMW Ignition Coil Diagnosis Begins With Fault Codes
What does a cylinder misfire code prove? It identifies where the misfire was detected, but it does not name the failed part.
For this reason, a code such as P0301 points toward cylinder one. However, that cylinder can misfire for several reasons. In addition, the ignition coil may fail to create a strong spark. Likewise, a worn spark plug can also interrupt combustion. Fuel delivery or wiring concerns may create similar results.
Therefore, code review works as the first diagnostic branch. The technician can compare stored faults with engine data and recent operating history. In addition, multiple cylinder codes may change the testing path.
Before replacing parts, a technician may review several items:
- The stored code shows which cylinder needs closer testing and whether more than one cylinder has a recorded misfire.
- Engine data can show whether the fault returns at idle, during acceleration, or after the engine reaches operating temperature.
- Other stored faults may point toward electrical, fuel, or mechanical concerns that need review before coil replacement.
The code gives the technician a starting point. Therefore, the next step is proving whether the suspected coil caused the fault.
Coil Testing Can Isolate the Fault
How does moving a coil confirm the problem? A technician can move the suspected coil to another cylinder and watch the fault location.
For this reason, suppose cylinder two has a misfire code. Then the technician can move that coil to a known good cylinder. Then the fault memory gets cleared before the engine runs again.
If the misfire moves with the coil, the evidence points toward that coil. By contrast, a misfire that stays on cylinder two sends testing elsewhere. This method separates the component from the cylinder location.
BMW diagnostic guidance has used this approach because some coil faults appear only while the engine runs. A coil may look normal during a visual check. However, heat and engine load can reveal an internal fault.
Therefore, the swap test adds stronger evidence before replacement. It also reduces the chance of replacing a good coil while the original problem remains.
Spark Plugs Need Inspection During Diagnosis
Why inspect the spark plug when the coil is already suspected? The plug works with the coil to create the spark inside the cylinder.
In addition, a worn electrode can require more voltage for a clean spark. Furthermore, fouling can interfere with ignition. In addition, oil inside the plug well can contaminate the coil boot and plug area.
Therefore, the technician may remove the plug and inspect its condition. Deposits, wear, damage, or contamination can change the repair path. The plug service history also gives useful context.
A coil replacement may not solve a misfire caused by a worn plug. Likewise, a damaged coil boot may point toward oil entering the plug well. That can require another repair beyond the ignition part itself.
For this reason, coil and plug inspection work together. Each part sits in the same ignition path, so both deserve attention during diagnosis.
A Misfire Can Lead to Other Diagnostic Checks
What happens if the misfire stays on the same cylinder after a coil swap? The technician keeps testing other possible causes on that cylinder.
Therefore, the spark plug is a common next check. However, the fuel injector, wiring, connector, or mechanical sealing may also need review. Each can interrupt combustion without moving with the coil.
In addition, electrical testing can reveal connector or wiring concerns. Fuel testing may point toward an injector problem. Mechanical testing may follow when ignition and fuel checks do not explain the fault.
This branch matters because a misfire code cannot separate every cause by itself. Therefore, professional diagnosis follows evidence from one test to the next.
The owner should expect the technician to explain what was tested and what the results showed. That record creates a clearer reason for the repair that follows.
Ignition Coil Repair Includes Verification After Replacement
What happens after testing confirms a failed coil? The technician removes the faulty part, installs the correct replacement, and checks the engine again.
However, access varies across BMW engines. Some coils sit beneath covers that must come off first. Electrical connectors also need careful handling before the coil can be lifted from the plug well.
After installation, the technician reconnects the hardware and clears stored fault codes. Then the engine runs again so the repaired cylinder can be checked.
Post repair verification may include another scan and a road test. The technician wants to confirm that the misfire does not return. In addition, engine operation should remain smooth across the tested range.
Parts selection matters during this work. A replacement coil must match the BMW engine and ignition setup. Spark plug work may also be completed when inspection shows wear or related concerns.
Replacement finishes the mechanical part of the job. Verification confirms whether the repair corrected the original fault.
Repair Cost Changes With the Work Required
Why can one BMW ignition coil repair cost more than another? The total reflects diagnosis, parts, access, and any related work found during testing.
In some repairs, a single confirmed coil may require limited parts work. However, worn spark plugs or oil contamination can add more labor and parts. Engine layout can also change how much disassembly is needed.
Several cost inputs deserve review before authorizing repair:
- Diagnostic labor covers code review, testing, and fault isolation before replacement starts.
- Parts cost changes with the exact BMW engine, coil type, spark plug needs, and any related components.
- Labor time can rise when access requires more disassembly or when another fault needs separate testing.
A service estimate should reflect the specific BMW and the findings from diagnosis. Therefore, a fixed price before testing may leave out needed work or include work that is unnecessary.
Tom Bush BMW Orange Park can inspect the fault and explain the recommended repair path. If a warning light is flashing or the engine runs very rough, driving may risk further damage. In that situation, contact the service team before continuing the trip.
